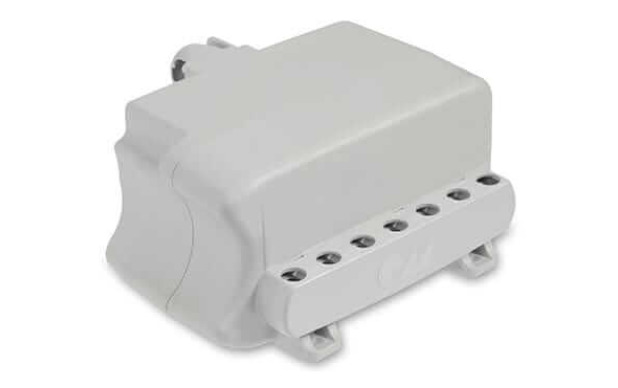

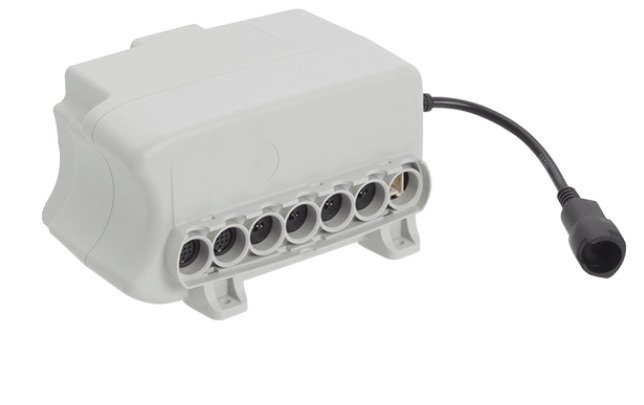

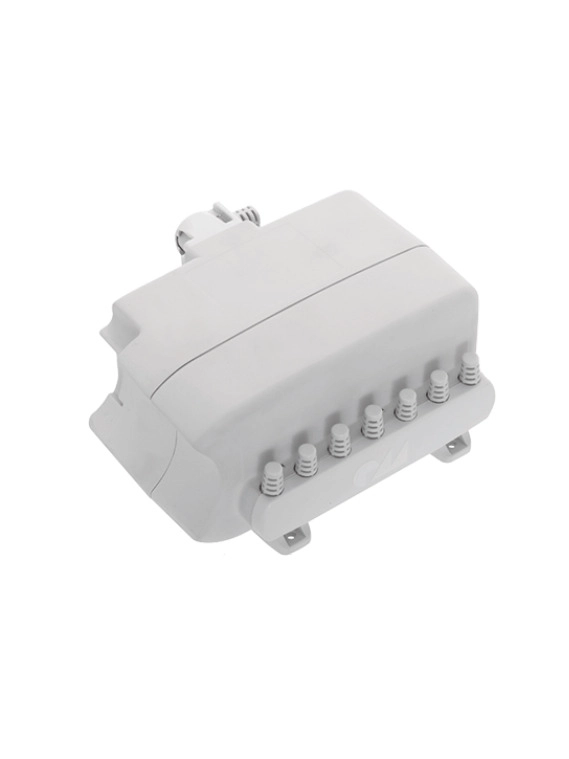

Блок питания MCL II

Блок питания MCL II

Блок питания 24 В MCL II

Блок управления для макс. 4 актуаторов, со встроенным SMPS.

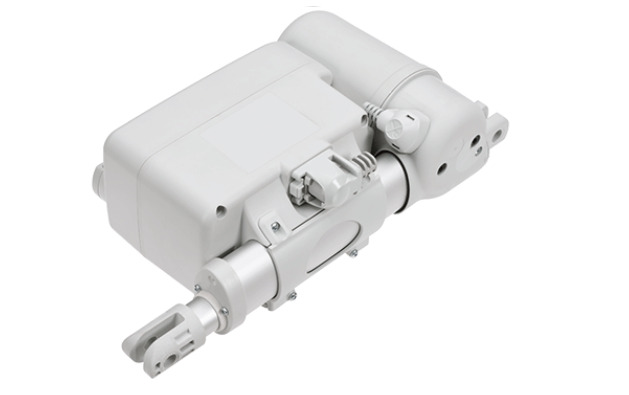

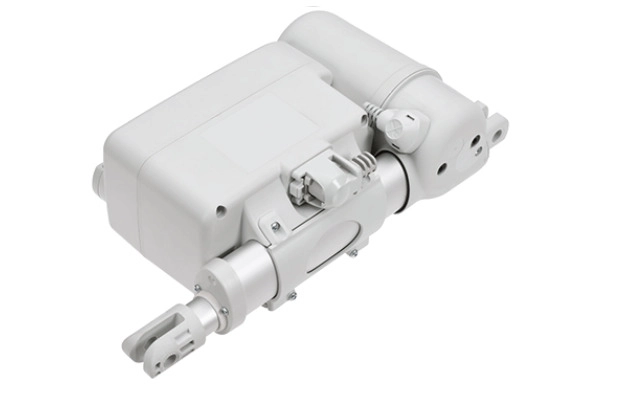

Предназначен для непосредственного подключения к MEGAMAT 2 и MEGAMAT 5. Защита от первой ошибки.

Варианты подключения: подключения для приводов: 1-4; соединения для элементов управления: 1-2

Опции оборудования: подключение аккумуляторной батареи, розетка (29 В постоянного тока),

например внешние системы освещения, сетевой кабель с заземлением.

STANDARD CONFIGURATIONS

: Performance data :
Duty cycle : 2/18 min. or 10 %, max, 5 switching cycles per minute
Control unit : relay control
Output voltage : 29 V DC constant
: Components :
Housing colour : light grey RAL 7035
Supply cable : pluggable: GB-plug, grey, spiralled, 1960 mm, PVC GB-plug, grey, spiralled, 2460 mm, PVC GB-plug with earthing, grey, spiralled, 1960 mm, PVC USA-plug, grey, straight, 4000 mm, PVC USA-plug with earthing, grey, straight, 4000 mm, PVC AUS-plug, grey, spiralled, 1960 mm, PVC AUS-plug with earthing, grey, spiralled, 1960 mm, PVC JAP-plug, grey, straight, 4000 mm, PVC JAP-plug with earthing, grey, straight, 4000 mm, PVC earthing pin plug, grey, straight, 3000 mm, PVC earthing pin plug, grey, spiralled, 1960 mm, PVC contour plug, grey, spiralled, 1960 mm, PVC
SMPS : yes
: Further data :
Connectivity * : connections for drives: 1-4 connections for operating elements: 1-2
Protection type : IPX6
Protection class : II
Relative humidity : 30% – 75%
Ambient temperature : +10°C - +40°C
Power supply : wide input voltage range 100-240 V AC
Safety : single-fault protected
Assembly options : fastening drill-holes

EXTRA CONFIGURATIONS

: Performance data :
Control unit : relay-free control, microprocessor control (synchronous control unit)
: Components :
Supply cable : mains cable with earthing connection
: Further data :
Assembly options : direct fixing to MEGAMAT 2 and MEGAMAT 5 (2 mounting clips)
Equipment options : rechargeable battery connection, power outlet (29 V DC) for e.g. external light systems
