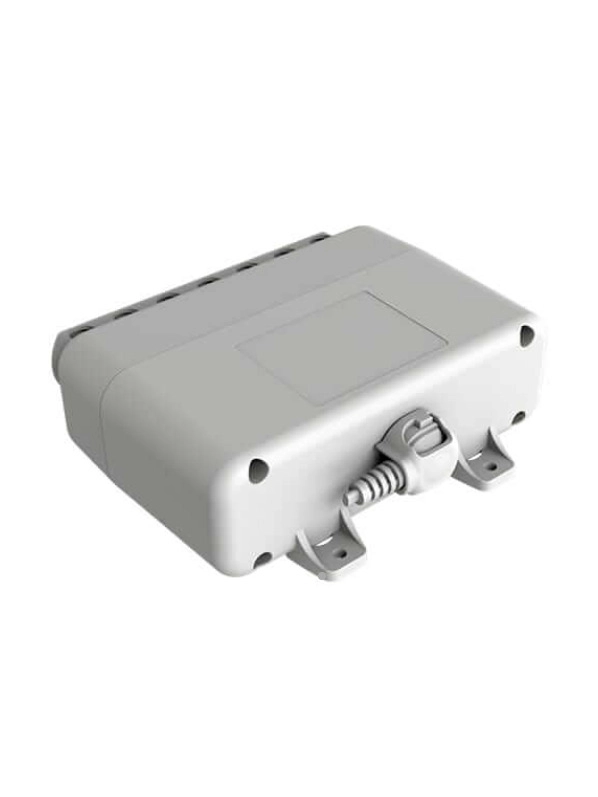

Блок питания MCL III

Блок питания MCL III

ОПТИМАЛЬНЫЙ КОНТРОЛЛЕР ДЛЯ НИЗКОЙ КРОВАТИ

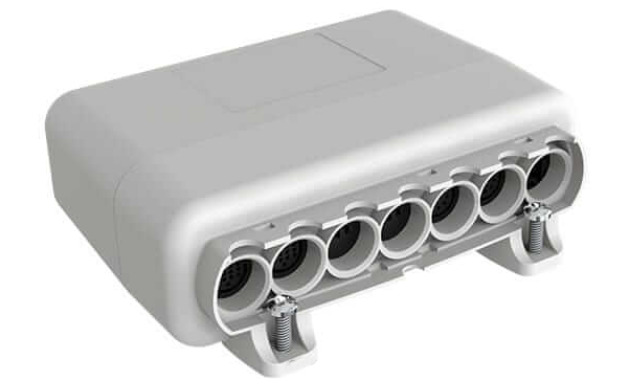

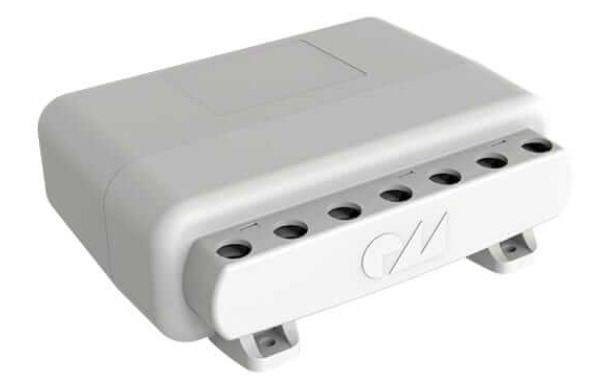

Контроллер Dewert MCLIII- это компактный, оптимизированный по пространству контроллер  до четырех приводов.

 Благодаря плоской и особенно компактной конструкции контроллер идеально подходит для приложений с

 ограниченным пространством, т.е. для крепления на невысокой функциональной кровати  .

 Эти типы медицинских и больничных коек могут быть очень низкими и находятся в тренде на рынке кроватей.

Это решение дает возможность уменьшить риск при падении пациента с кровати на пол.

 Благодаря компактной конструкции контроллера MCLIII, низкоуровневые кровати могут быть реализованы при сохранении

 гибкости в отношении дизайна и функциональности.

STANDARD CONFIGURATIONS

: Performance data :
Power-on time : 2 - 18 min
Power-on time : 10 %
switching cycles : max. 5/min
Controller : Relay control
Output voltage : 29-const. V-DC
: Connection options :
: Components :
Displays Housing colour : Light grey
RAL : 7035
Connection cable : Pluggable: GB plug, grey, coiled, 1960 mm, PVC GB plug, grey, coiled, 2460mm, PVC GB plug with earthing, grey, coiled, 1960 mm, PVC USA plug, grey, smooth, 4000 mm, PVC USA plug with earthing, grey, smooth, 4000 mm, PVC AUS plug, grey, coiled, 1960 mm, PVC AUS plug with earthing, grey, coiled, 1960 mm, PVC JAP plug, grey, smooth, 4000 mm, PVC JAP plug with earthing, grey, smooth, 4000 mm, PVC Shock-proof plug, grey, smooth, 3000 mm, PVC Shock-proof plug, grey, coiled, 1960 mm, PVC Flat plug grey, coiled, 1960 mm, PVC
Power supply unit : 100-240 V AC - wide range voltage
SMPS : PD 14 (max.100W) / PD 15 (max.160W)

EXTRA CONFIGURATIONS

: Components :
Controller : Direct control, microprocessor controllers (synchronous controller)
Connection cable : Power cord with earthing
: Additional data :
Equipment options : Battery connection Voltage output (29V-DC) e.g. for external lighting Power cord with earthing
Installation options : Fastening bores Direct fastening to MEGAMAT 2 and MEGAMAT 5 possible (2 mounting clips)
: Performance data :
Safety : First error safe
Protection degree : IPX6
Connection options : Connections for drives 1-4 Connections for controls: 1-2
Protection class : III
Relative air humidity : 30 - 75 %
Mains power supply connection : Wide range input voltage: 100 – -240 V AC
Ambient temperature : 10 - 40 °C
